Micro Pump select

Customization

Customization is our standard practice: all our pumps can be modified to meet your specific requirements. And within a few days. Customized range of mini pumps:

  • Voltage: DC 3-24 V
  • Air flow: 0.5-100 L/min
  • Pressure: 0.5-7 bar
  • Vacuum: -30-95 kpa
  • Diaphragm Material: EPDM/PTFE/FKM
send a quote

What can you get? When you choose us!

Micro pump specialists with 15 years of experience in the pump vertical field.

ISO 9001 quality management system approved.
  • Technical support
  • System solutions
  • Free samples
  • Industry news
  • Agent procurement services

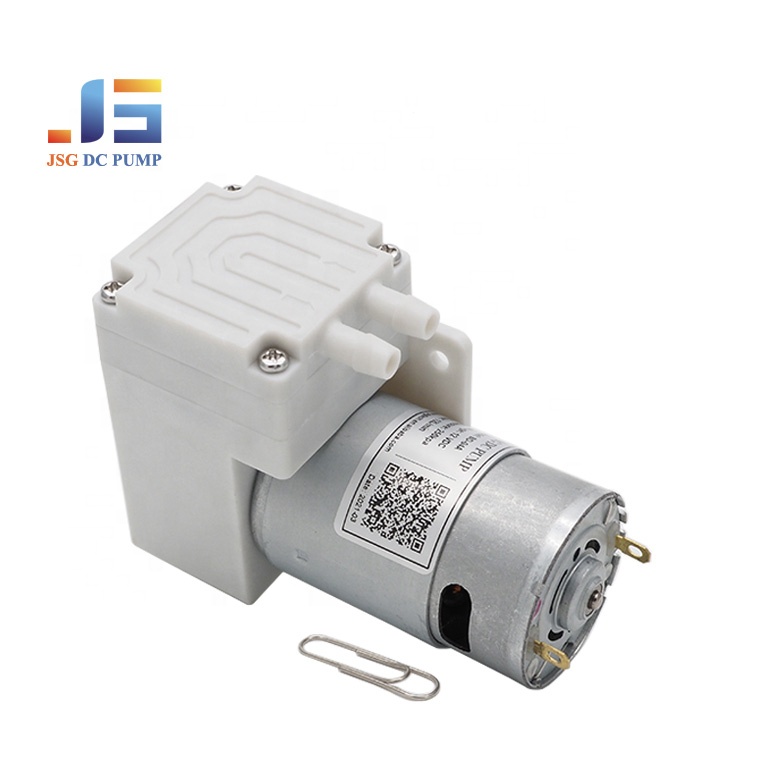

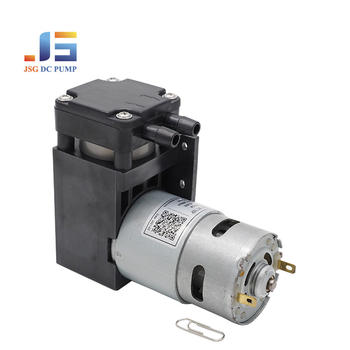

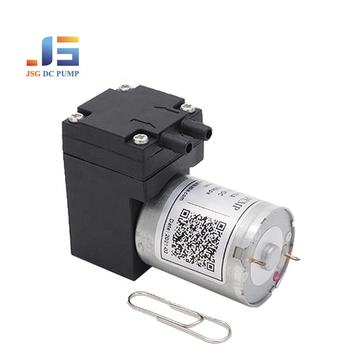

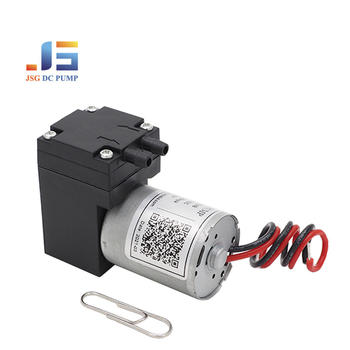

Micro Diaphragm Air Vacuum Pumps With Brush Motor

DC brushed motor miniature diaphragm pumps with low cost and a life span of between 500 and 1000 hours for intermittent working scenarios. The transfer medium is air or slightly corrosive gases. Conventional diaphragm and valve material is EPDM, special for material FKM. Learn more.

New wpDataTable

Model Voltage Current Free Flow Max Pressure Max Vacuum Motor Dimention(LxWxH)
BD-01A 3V 0.4A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 3V 0.6A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 6V 0.2A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 6V 0.3A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 12V 0.1A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 12V 0.15A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01V 3V 0.4A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 3V 0.6A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-01V 6V 0.2A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 6V 0.3A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-01V 12V 0.1A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 12V 0.15A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-02A 6V 0.2A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 6V 0.4A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 6V 0.4A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02A 12V 0.1A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 12V 0.2A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 12V 0.2A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02V 6V 0.2A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 6V 0.4A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 6V 0.4A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-02V 12V 0.1A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 12V 0.2A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 12V 0.2A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-03A 6V 0.8A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 6V 0.8A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 6V 1.6A 6 L/min 3 bar Brush 76x30x49 mm
BD-03A 12V 0.4A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 12V 0.4A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 12V 0.8A 6 L/min 3 bar Brush 76x30x49 mm
BD-03A 24V 0.2A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 24V 0.2A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 24V 0.4A 6 L/min 3 bar Brush 76x30x49 mm
BD-03V 6V 0.8A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 6V 1.6A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 12V 0.4A 6 L/min -70 kpa Brush 76x30x49 mm
BD-03V 12V 0.4A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 12V 0.8A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.2A 6 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.2A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 24V 0.4A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.4A 6 L/min -70 kpa Brush 76x30x49 mm
BD-04A 6V 1.2A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 6V 1.6A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 6V 2.4A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 12V 0.6A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 12V 0.8A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 12V 1.2A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 24V 0.6A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04A 24V 0.6A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 6V 1.2A 10 L/min -75 kpa Brush 101x40x72 mm
BD-04V 6V 1.6A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04V 6V 2.4A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 12V 0.6A 10 L/min -75 kpa Brush 101x40x72 mm
BD-04V 12V 0.8A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04V 12V 1.2A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 24V 0.3A 10 L/min -75 kpa Brush 101x40x72 mm

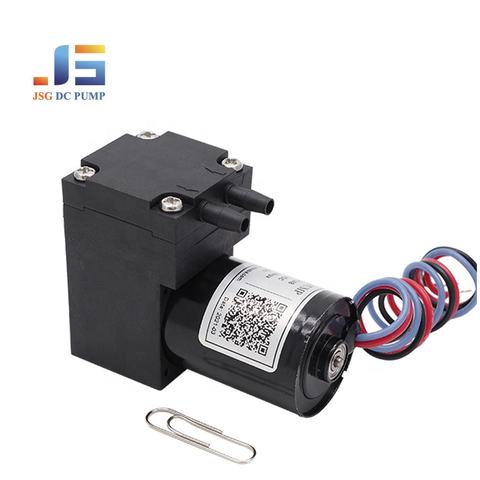

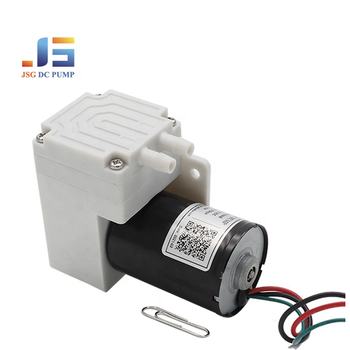

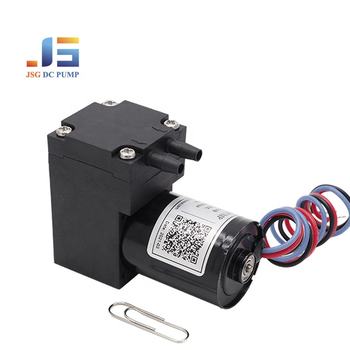

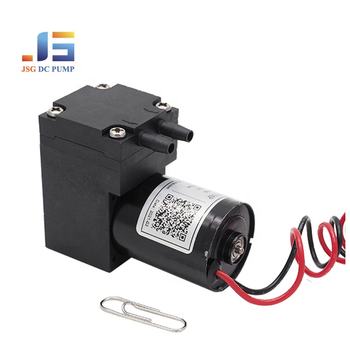

Micro Diaphragm Air Vacuum Pumps With Brushless Motor

DC brushless motor miniature diaphragm pumps with low electromagnetic interference and a life time between 3000-5000 hours, suitable for continuous duty scenarios. Standard voltage ratings available in 3V,6V,9V,12V,24V, custom voltage range 3V-30V. Learn more.

New wpDataTable

Model Voltage Current Free Flow Max Pressure Max Vacuum Motor Dimention(LxWxH)
BD-01A 3V 0.4A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 3V 0.6A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 6V 0.2A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 6V 0.3A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 12V 0.1A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 12V 0.15A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01V 3V 0.4A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 3V 0.6A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-01V 6V 0.2A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 6V 0.3A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-01V 12V 0.1A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 12V 0.15A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-02A 6V 0.2A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 6V 0.4A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 6V 0.4A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02A 12V 0.1A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 12V 0.2A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 12V 0.2A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02V 6V 0.2A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 6V 0.4A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 6V 0.4A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-02V 12V 0.1A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 12V 0.2A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 12V 0.2A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-03A 6V 0.8A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 6V 0.8A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 6V 1.6A 6 L/min 3 bar Brush 76x30x49 mm
BD-03A 12V 0.4A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 12V 0.4A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 12V 0.8A 6 L/min 3 bar Brush 76x30x49 mm
BD-03A 24V 0.2A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 24V 0.2A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 24V 0.4A 6 L/min 3 bar Brush 76x30x49 mm
BD-03V 6V 0.8A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 6V 1.6A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 12V 0.4A 6 L/min -70 kpa Brush 76x30x49 mm
BD-03V 12V 0.4A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 12V 0.8A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.2A 6 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.2A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 24V 0.4A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.4A 6 L/min -70 kpa Brush 76x30x49 mm
BD-04A 6V 1.2A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 6V 1.6A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 6V 2.4A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 12V 0.6A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 12V 0.8A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 12V 1.2A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 24V 0.6A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04A 24V 0.6A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 6V 1.2A 10 L/min -75 kpa Brush 101x40x72 mm
BD-04V 6V 1.6A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04V 6V 2.4A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 12V 0.6A 10 L/min -75 kpa Brush 101x40x72 mm
BD-04V 12V 0.8A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04V 12V 1.2A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 24V 0.3A 10 L/min -75 kpa Brush 101x40x72 mm

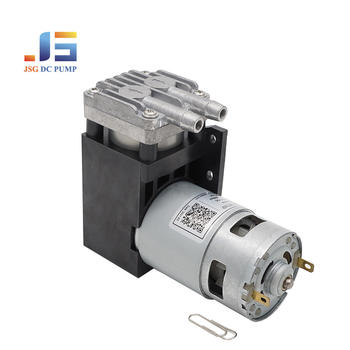

Small Piston Gas Air Vacuum Pumps With Brush Motor

12V/24V brush motor oil-free miniature piston pump, low cost for bulk purchase, life between 800-1000 hours, excellent pneumatic data, max flow rate 40L/min, max pressure 650kPa. pump head available in PPS and aluminium alloy. Learn more.

New wpDataTable

Model Voltage Current Free Flow Max Pressure Max Vacuum Motor Dimention(LxWxH)
BD-01A 3V 0.4A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 3V 0.6A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 6V 0.2A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 6V 0.3A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 12V 0.1A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 12V 0.15A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01V 3V 0.4A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 3V 0.6A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-01V 6V 0.2A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 6V 0.3A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-01V 12V 0.1A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 12V 0.15A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-02A 6V 0.2A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 6V 0.4A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 6V 0.4A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02A 12V 0.1A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 12V 0.2A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 12V 0.2A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02V 6V 0.2A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 6V 0.4A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 6V 0.4A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-02V 12V 0.1A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 12V 0.2A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 12V 0.2A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-03A 6V 0.8A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 6V 0.8A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 6V 1.6A 6 L/min 3 bar Brush 76x30x49 mm
BD-03A 12V 0.4A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 12V 0.4A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 12V 0.8A 6 L/min 3 bar Brush 76x30x49 mm
BD-03A 24V 0.2A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 24V 0.2A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 24V 0.4A 6 L/min 3 bar Brush 76x30x49 mm
BD-03V 6V 0.8A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 6V 1.6A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 12V 0.4A 6 L/min -70 kpa Brush 76x30x49 mm
BD-03V 12V 0.4A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 12V 0.8A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.2A 6 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.2A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 24V 0.4A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.4A 6 L/min -70 kpa Brush 76x30x49 mm
BD-04A 6V 1.2A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 6V 1.6A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 6V 2.4A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 12V 0.6A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 12V 0.8A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 12V 1.2A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 24V 0.6A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04A 24V 0.6A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 6V 1.2A 10 L/min -75 kpa Brush 101x40x72 mm
BD-04V 6V 1.6A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04V 6V 2.4A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 12V 0.6A 10 L/min -75 kpa Brush 101x40x72 mm
BD-04V 12V 0.8A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04V 12V 1.2A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 24V 0.3A 10 L/min -75 kpa Brush 101x40x72 mm

Small Piston Gas Air Vacuum Pumps With Brushless Motor

DC brushless motor oil-free piston air pump, low EMI, CE and EMC approved. Life span of 3000-5000 hours, suitable for continuous working scenarios. Widely used in vacuum lifters, medical atomisation, cleaning fogging and other scenarios. Learn more.

New wpDataTable

Model Voltage Current Free Flow Max Pressure Max Vacuum Motor Dimention(LxWxH)
BD-01A 3V 0.4A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 3V 0.6A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 6V 0.2A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 6V 0.3A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 12V 0.1A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 12V 0.15A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01V 3V 0.4A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 3V 0.6A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-01V 6V 0.2A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 6V 0.3A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-01V 12V 0.1A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 12V 0.15A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-02A 6V 0.2A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 6V 0.4A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 6V 0.4A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02A 12V 0.1A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 12V 0.2A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 12V 0.2A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02V 6V 0.2A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 6V 0.4A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 6V 0.4A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-02V 12V 0.1A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 12V 0.2A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 12V 0.2A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-03A 6V 0.8A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 6V 0.8A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 6V 1.6A 6 L/min 3 bar Brush 76x30x49 mm
BD-03A 12V 0.4A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 12V 0.4A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 12V 0.8A 6 L/min 3 bar Brush 76x30x49 mm
BD-03A 24V 0.2A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 24V 0.2A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 24V 0.4A 6 L/min 3 bar Brush 76x30x49 mm
BD-03V 6V 0.8A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 6V 1.6A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 12V 0.4A 6 L/min -70 kpa Brush 76x30x49 mm
BD-03V 12V 0.4A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 12V 0.8A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.2A 6 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.2A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 24V 0.4A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.4A 6 L/min -70 kpa Brush 76x30x49 mm
BD-04A 6V 1.2A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 6V 1.6A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 6V 2.4A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 12V 0.6A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 12V 0.8A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 12V 1.2A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 24V 0.6A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04A 24V 0.6A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 6V 1.2A 10 L/min -75 kpa Brush 101x40x72 mm
BD-04V 6V 1.6A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04V 6V 2.4A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 12V 0.6A 10 L/min -75 kpa Brush 101x40x72 mm
BD-04V 12V 0.8A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04V 12V 1.2A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 24V 0.3A 10 L/min -75 kpa Brush 101x40x72 mm

Mini Compressor air vacuum pump with brush motor

DC brush mini compressor, compact size, with inlet and outlet ports for inflation and suction. All aluminium alloy for frequent load starting, good heat resistance. Can replace large oil-free piston air pumps or compressors, new applications for home, portable, mobile, backpack. Great size and weight, its biggest selling point! Learn more.

New wpDataTable

Model Voltage Current Free Flow Max Pressure Max Vacuum Motor Dimention(LxWxH)
BD-01A 3V 0.4A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 3V 0.6A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 6V 0.2A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 6V 0.3A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 12V 0.1A 0.8 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01A 12V 0.15A 1 L/min 1 bar Brush 45.5x15.5x25.5 mm
BD-01V 3V 0.4A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 3V 0.6A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-01V 6V 0.2A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 6V 0.3A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-01V 12V 0.1A 0.5 L/min -30 kpa Brush 45.5x15.5x25.5 mm
BD-01V 12V 0.15A 0.8 L/min -50 kpa Brush 45.5x15.5x25.5 mm
BD-02A 6V 0.2A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 6V 0.4A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 6V 0.4A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02A 12V 0.1A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 12V 0.2A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 12V 0.2A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 1 L/min 0.5 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 1.5 L/min 1 bar Brush 55x24x40 mm
BD-02A 24V 0.1A 3 L/min 1.5 bar Brush 55x24x40 mm
BD-02V 6V 0.2A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 6V 0.4A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 6V 0.4A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-02V 12V 0.1A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 12V 0.2A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 12V 0.2A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 1 L/min -40 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 1.5 L/min -50 kpa Brush 55x24x40 mm
BD-02V 24V 0.1A 2.5 L/min -60 kpa Brush 55x24x40 mm
BD-03A 6V 0.8A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 6V 0.8A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 6V 1.6A 6 L/min 3 bar Brush 76x30x49 mm
BD-03A 12V 0.4A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 12V 0.4A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 12V 0.8A 6 L/min 3 bar Brush 76x30x49 mm
BD-03A 24V 0.2A 3 L/min 2 bar Brush 76x30x49 mm
BD-03A 24V 0.2A 5 L/min 2.5bar Brush 76x30x49 mm
BD-03A 24V 0.4A 6 L/min 3 bar Brush 76x30x49 mm
BD-03V 6V 0.8A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 6V 1.6A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 12V 0.4A 6 L/min -70 kpa Brush 76x30x49 mm
BD-03V 12V 0.4A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 12V 0.8A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.2A 6 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.2A 3 L/min -55 kpa Brush 76x30x49 mm
BD-03V 24V 0.4A 4 L/min -70 kpa Brush 76x30x49 mm
BD-03V 24V 0.4A 6 L/min -70 kpa Brush 76x30x49 mm
BD-04A 6V 1.2A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 6V 1.6A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 6V 2.4A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 12V 0.6A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 12V 0.8A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 12V 1.2A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 9 L/min 2 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 15 L/min 2.5 bar Brush 101x40x72 mm
BD-04A 24V 0.6A 18 L/min 3 bar Brush 101x40x72 mm
BD-04A 24V 0.3A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04A 24V 0.6A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 6V 1.2A 10 L/min -75 kpa Brush 101x40x72 mm
BD-04V 6V 1.6A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04V 6V 2.4A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 12V 0.6A 10 L/min -75 kpa Brush 101x40x72 mm
BD-04V 12V 0.8A 15 L/min -80 kpa Brush 101x40x72 mm
BD-04V 12V 1.2A 18 L/min -80 kpa Brush 101x40x72 mm
BD-04V 24V 0.3A 10 L/min -75 kpa Brush 101x40x72 mm

Miniature pumps picture display

All pumps have ROHS, CE, EMC certificates. Learn more about JSC DC PUMP company.

10055
10058
10061
10062
10063
10065
10066

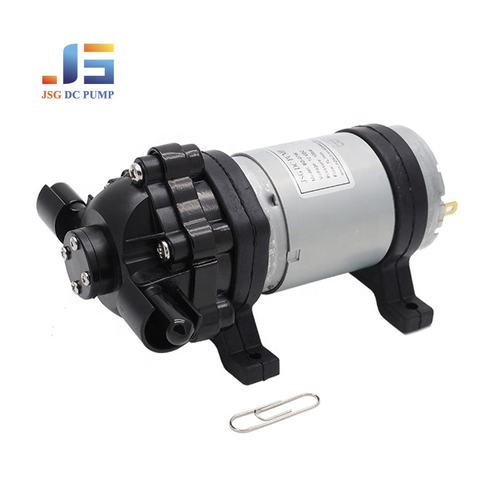

10069
10071
10081
10026

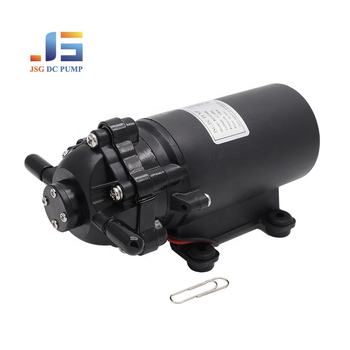

10034

Enough About Us. Let's Talk About Your Miniature Air Vacuum Pump Project Now.

Developing a new unique micro pump is easy here in BODENFLO.

Professional feedback within 8 hour Full capabilities to reply on Best prices for you Fast sample in 1- 3 days Fast delivery in 1- 3 days


    Please prove you are human by selecting the heart.
